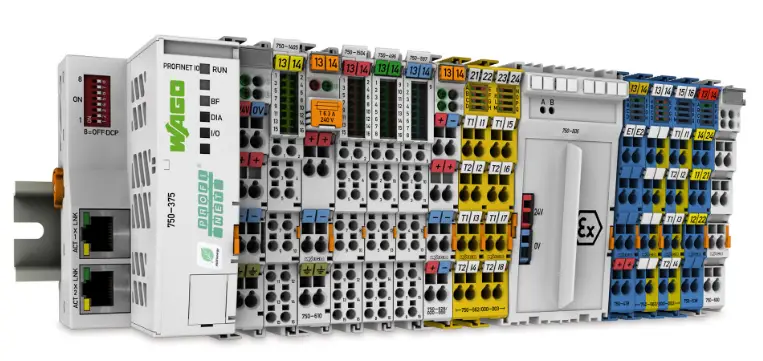

WAGO 750-402

Technical data
Number of digital inputs 4
Total number of channels (module) 4
Signal type Digital
Signal type (voltage) 24 VDC
Sensor connection 2 x (2-wire, 3-wire); A suitable field side connection module (e.g., 750-614) must also be used to connect other sensors.
Input characteristic high-side switching
Input filter 3ms
Input current per channel for signal (1) typ. 4.5mA
Voltage range for signal (0) −3 … +5 VDC
Voltage range for signal (1) 15 … 30 VDC
Sensor supply 24 VDC
Input data width (internal) max. 4Bit
Supply voltage (system) 5 VDC; via data contacts
Current consumption (5 V system supply) 7.5mA
Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
Isolation 500 V system/field
Indicators LED (A-D) green: Status DI 1 … DI 4
Number of incoming power jumper contacts 2
Number of outgoing power jumper contacts 2
Current carrying capacity (power jumper contacts) 10A
